Wire Metal Drawing Machine , Contact Wire Drawing Plant For Cu-Sn Copper Magnesium

Name: Wire Metal Drawing Machine Contact Wire Drawing Plant For CuSn Copper Magnesium
Brand: Herrman
Price: 1 USD

Wholesale Wire Metal Drawing Machine , Contact Wire Drawing Plant For Cu-Sn Copper Magnesium from china suppliers

Brand Name : Herrman

Model Number : 1200/1+1000/4

Certification : CE, UL, GS, SGS, TUV, ISO

Place of Origin : China

MOQ : 1 SET

Price : By Negotiation

Payment Terms : L/C, D/A, D/P, T/T or By Negotiation

Supply Ability : 10 SETS PER MONTH

Delivery Time : 123 DAYS

Packaging Details : EXPORT PACKING

Product Name : Copper Alloy Trolley Wire Drawing Machine

Inlet Diameter : 20~22mm

Outlet Diameter : 10.8mm - 14.4mm

Capstan Wheel Material : copper, copper silver, Cu-Sn copper magnesium, Al or Al alloy flat wire

Section Elongation : 20% - 47%

Line Speed : 60m/min

Contact Now

Contact Wire Trolley Wire Drawing Machine For Copper Silver, Cu-Sn Copper Magnesium

Application

Copper alloy trolley wire drawing machine is mainly used to draw and produce copper alloy trolley wire used in electrified railways. Draw dia. 20-22 mm rod to dia. 10.8~14.4 mm contact trolley wire.

Main Features

Each drawing capstan is driven by separate motor, torque controlled, so the wires hardly slip on the capstan.

The drawing capstans are all cooled by circulating water to guarantee cooling of wires.

The machine use wire guiding ring to push the wires to prevent wires from deflecting when take-up.

The application of touch screen: displaying and setting parameters are convenient.

Main Components

coil type pay-off, axial loading pay-off frame, drawing main machine, mechanical electronic meter counter, gantry ground rack type take-up machine, electric control system, drawing cooling system, wire pointing machine

Main Technical Data

Type	1200/1+1000/4	1000/4	Drawing Material
Inlet Wire Dia.(mm)	20~22	20	copper
Outlet Wire Dia. (mm)	10.8~14.4mm	10.8~14.4mm	copper silver
Section Elongation	20~47%	20~47%	Cu-Sn copper magnesium
Max. drawing Speed(m/min)	60	60	Al or Al alloy flat wire
Motor power	1 pc of 75kw, 4pcs of 55kw, DC	1 pc of 75kw, 3pcs of 55kw, DC
Ratio of reducer	80~200	80~140
Pay off reel	2000	2000
Take up reel	2000	2000

Machine Drawing

Wire Metal Drawing Machine , Contact Wire Drawing Plant For Cu-Sn Copper Magnesium

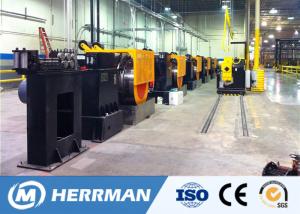

Machine Photo

Wire Metal Drawing Machine , Contact Wire Drawing Plant For Cu-Sn Copper Magnesium
